DC Vehicle Inlet CCS2

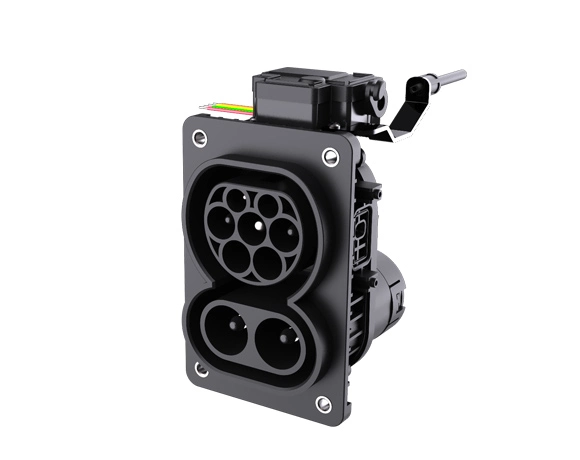

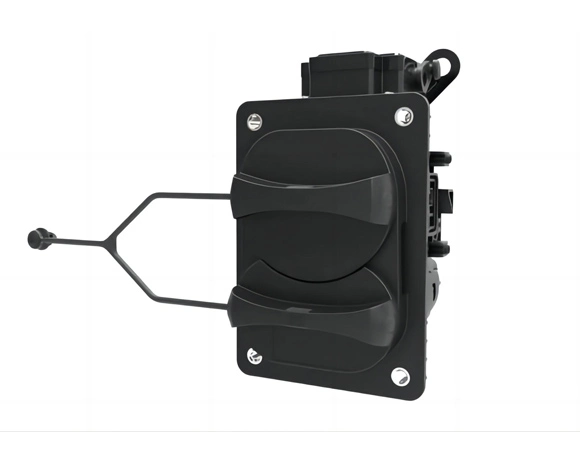

YG1404 series European standard AC and DC integrated charging receptacles, installed on electric vehicles, through the European standard AC charging plug in accordance with IEC 62196-2-2022 or in accordance with IEC 62196-3-2022 The European standard DC charging plug is used to realize the charging function and meet the interchange requirements. Adopt direct plug-in quick connect system, easy to operate and labor-saving, power terminal silver-plated, 50mm² and below in crimping form, 70mm² and above in ultrasonic welding form, low temperature rise and strong stability. Due to the complexity of the assembly process, to ensure the overall performance of the product, it is recommended that the assembly of the cable assembly be completed by Yonggui.

 Get Free Quote  PDF Download

The Details of DC Vehicle Inlet （CCS2）

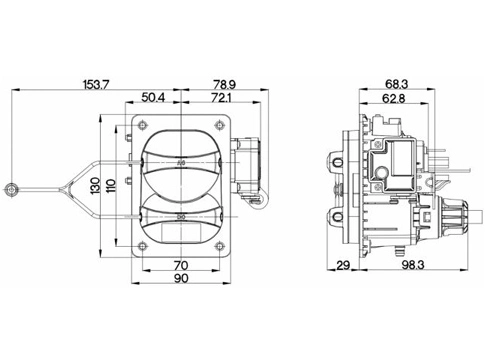

Left Side Electronic Lock

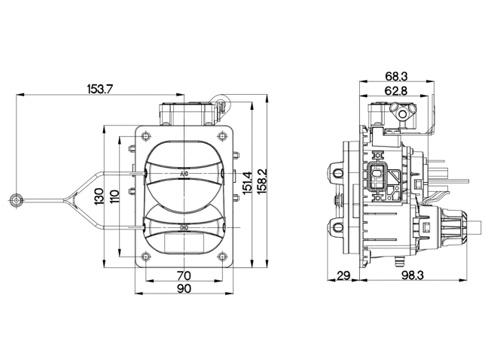

Upper Side Electronic Lock

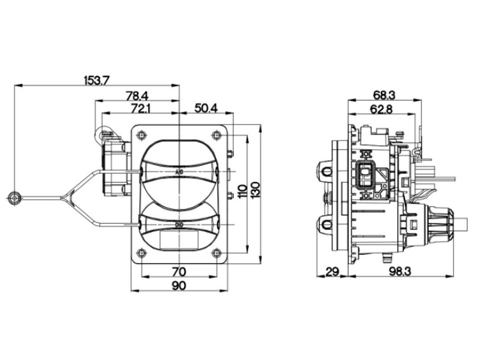

Right Side Electronic Lock

Specifications of DC Vehicle Inlet （CCS2）

Serial	Model	Phases	Lock Position	Current Rating		Rated Voltage		Port Wiring Specification (Unit: Mm2)
Serial	Model	Phases	Lock Position	DC (A)	AC (A)	DC(V)	AC (V)	DC+	DC-	L1	L2	L3	N	ON	PP	CP
1	YGC1404-EV-P7RD-L-32-80	Single	left	80	32A	1000V	250V	25	25	6	/	/	6	25	0.5	0.5
2	YGC1404-EV-P7RD-L-32-125			125				35	35	6	/	/	6	25	0.5	0.5
3	YGC1404-EV-P7RD-L-32-200			200				50	50	6	/	/	6	25	0.5	0.5
4	YGC1404-EV-P7RD-L-32-250			250				70	70	6	/	/	6	25	0.5	0.5
5	YGC1404-EV-P7RD-L-32-350			300				95	95	6	/	/	6	25	0.5	0.5
6	YGC1404-EV-P7RD-U-32-80		above	80				25	25	6	/	/	6	25	0.5	0.5
7	YGC1404- EV-P7RD- U-32-125			125				35	35	6	/	/	6	25	0.5	0.5
8	YGC1404- EV-P7RD- U-32-200			200				50	50	6	/	/	6	25	0.5	0.5
9	YGC1404- EV-P7RD- U-32-250			250				70	70	6	/	/	6	25	0.5	0.5
10	YGC1404- EV-P7RD- U-32-350			350				95	95	6	/	/	6	25	0.5	0.5
11	YGC1404-EV-P7RD-R-32-80		right	80				25	25	6	/	/	6	25	0.5	0.5
12	YGC1404- EV-P7RD- R-32-125			125				35	35	6	/	/	6	25	0.5	0.5
13	YGC1404- EV-P7RD- R-32-200			200				50	50	6	/	/	6	25	0.5	0.5
14	YGC1404- EV-P7RD- R-32-250			250				70	70	6	/	/	6	25	0.5	0.5
15	YGC1404- EV-P7RD- R-32-350			350				95	95	6	/	/	6	25	0.5	0.5
16	YGC1404-EV-P9RD-L-32-80	Three	left	80			480V	25	25	6	6	6	6	25	0.5	0.5
17	YGC1404-EV-P9RD-L-32-125			125				35	35	6	6	6	6	25	0.5	0.5
18	YGC1404-EV-P9RD-L-32-200			200				50	50	6	6	6	6	25	0.5	0.5
19	YGC1404-EV-P9RD-L-32-250			250				70	70	6	6	6	6	25	0.5	0.5
20	YGC1404-EV-P9RD-L-32-350			350				95	95	6	6	6	6	25	0.5	0.5
21	YGC1404-EV-P9RD-U-32-80		above	80				25	25	6	6	6	6	25	0.5	0.5
22	YGC1404- EV-P9RD- U-32-125			125				35	35	6	6	6	6	25	0.5	0.5
23	YGC1404- EV-P9RD- U-32-200			200				50	50	6	6	6	6	25	0.5	0.5
24	YGC1404- EV-P9RD- U-32-250			250				70	70	6	6	6	6	25	0.5	0.5
25	YGC1404- EV-P9RD-U-32-350			350				95	95	6	6	6	6	25	0.5	0.5
26	YGC1404-EV-P9RD-R-32-80		right	80				25	25	6	6	6	6	25	0.5	0.5
27	YGC1404- EV-P9RD- R-32-125			125				35	35	6	6	6	6	25	0.5	0.5
28	YGC1404- EV-P9RD- R-32-200			200				50	50	6	6	6	6	25	0.5	0.5
29	YGC1404- EV-P9RD- R-32-250			250				70	70	6	6	6	6	25	0.5	0.5
30	YGC1404- EV-P9RD- R-32-350			350				95	95	6	6	6	6	25	0.5	0.5
